Technologies
we are active in

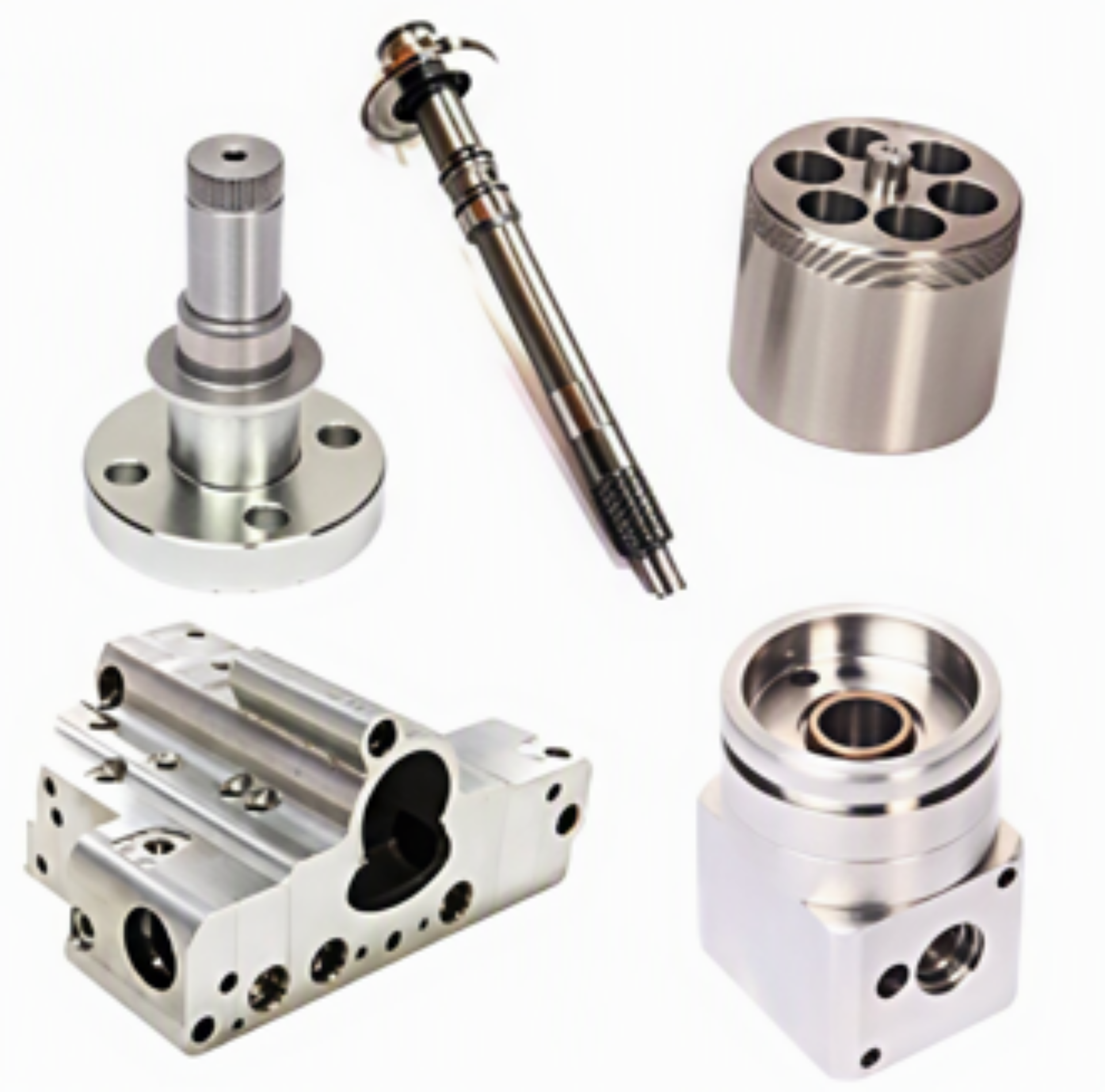

Turning - milling - grinding - lapping - honing
Starting from:
- Casting: sand - precision - low & high pressure die casting
- Forging: cold, hot & net shape
- Impact extrusions & extrusions
Production locations: India - Turkey - Roumania - Germany

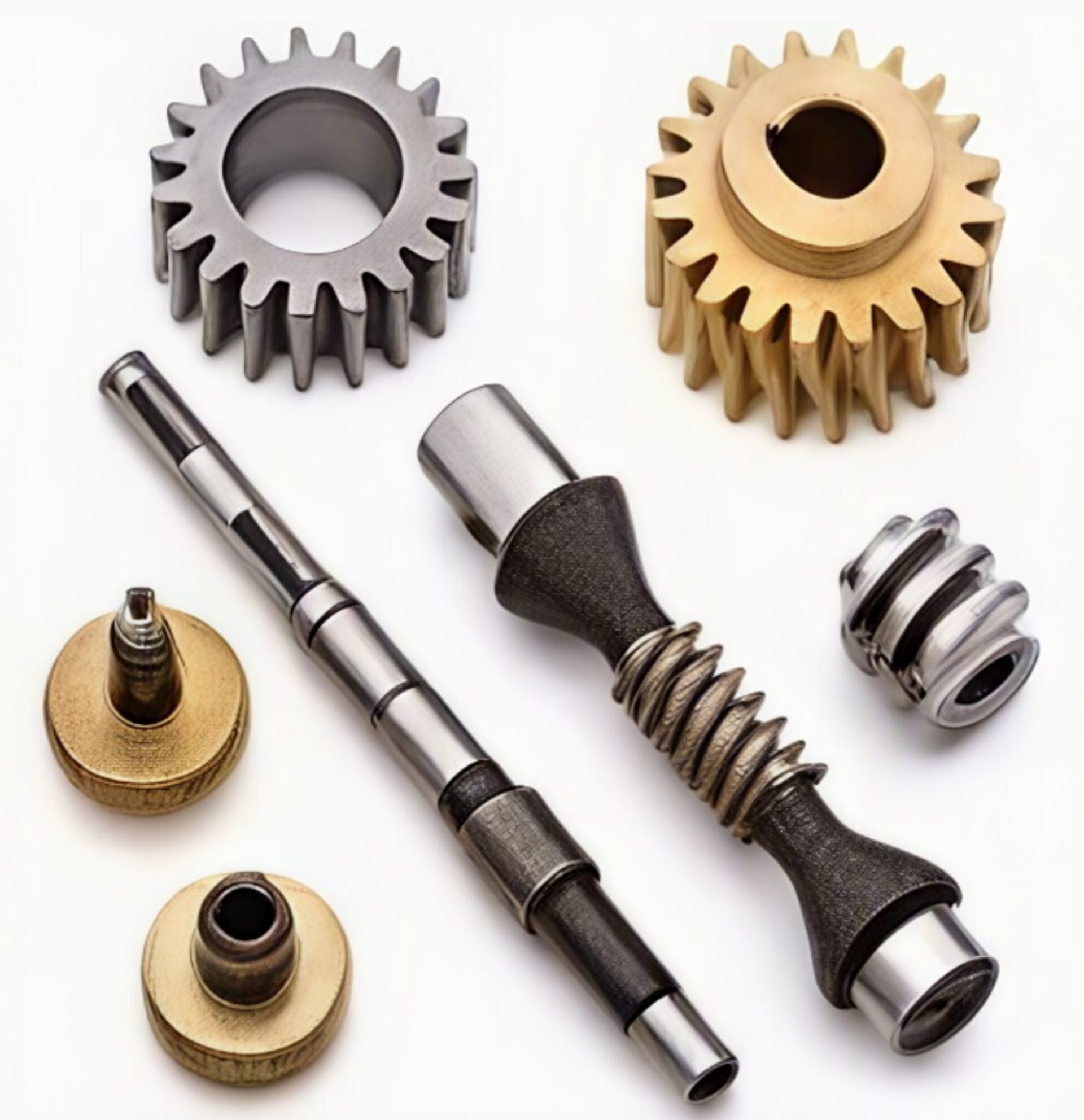

Gear cutting & grinding- splining - shaving - hobbing - rolling
- helical & straight gears: module 0.5–8 · quality to DIN 5
- splined shafts: up to 1,700 mm
- starter ring gears: up to Ø 1,200 mm
- flex-plate assemblies
- sensor and timing rings
- water-pump bearings.
Production locations: India - Turkey
Bar turning Ø 0.5–38 mm · hard turning · honing to 1 µm roundness, 3 µm tolerance
Swiss-type, multi-spindle and Escomatic turning, hard turning, internal and cylindrical grinding.
Steel, stainless, brass, bronze, copper, aluminium, technical plastics. Cleanroom assembly available.
Production locations:
India - Spain - Germany
Escomatic & Swiss-type multi-spindle turning Ø 0.5–38 mm · CNC single- and multi-spindle to Ø 40 mm · counter-drilling, tapping and milling in one pass. Automatic optical sorting and tribo-finishing
Micro-turned pins, bushings, sleeves and connector, sensor and medical/dental components, at small-series to high-volume output.
Free-cutting and stainless steel, aluminium, brass, bronze, copper, cupro-nickel, titanium and technical plastics.
Production location: France
Transfer presses 5–600 t · progressive presses 60–500 t
Drawn housings, shells and cups. In-house tool design, FEA simulation and tool fabrication. High-speed automated inspection, cleaning and eddy-current testing.
Production locations: USA - Mexico - China
85+ materials · high-volume net-shape production
Pressed and sintered P/M, high-density sinter, metal and ceramic injection moulding, investment casting, additive manufacturing. Stainless, tool steel, nickel, cobalt, titanium.
Production location: India, Turkey
Wire Ø 0.03–5 mm
Compression, tension and torsion springs, wire forms, washers, shims and stamped parts in spring steel, stainless and specialty alloys.
Production locations: China - USA - Mexico
Wire Ø 0.9–24 mm · multi-stage presses to 6 stations · fasteners M5–M22, classes 8.8/10.9/12.9
Near-net-shape sleeves, bushings, hollow and half-hollow parts, step pins, gearing and knurls, ball joints, wheel bolts and studs. In-house toolmaking and heat treatment.
Production locations: Turkey - Germany
Hybrid assemblies and plastic injection molding
Progressive and transfer stamping with in-house tooling, Presses 250–880 t
Clean-sheared precision flat parts with full-thickness cut edges. heat treatment and sub-assembly lines. Spot, MIG/MAG and laser welding, clinching, flow tapping, zero-defect assembly into finished technical functions. EV-battery parts to strict technical-cleanliness standards.
Production locations: India - France - Czechia
Moulding machines 50–500 t · grey-room and cleanroom
Overmoulding, insert moulding, 2K and 3K, thin-wall, moulded gears. Overmoulded leadframes and bus bars, sensor and ECU housings, stator and rotor overmoulds, reel-to-reel moulding.
Production locations: China - USA - Spain - Germany - Czechia
